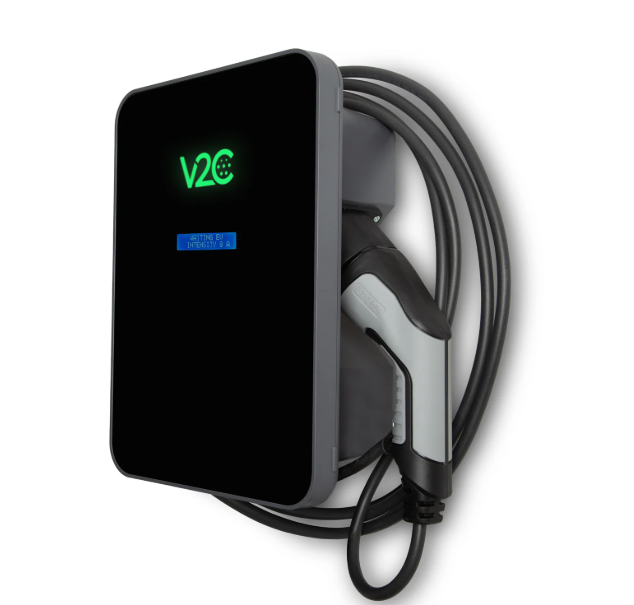

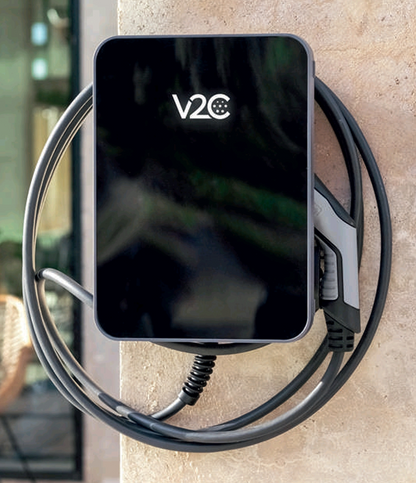

Trydan (7.4kW-22kW AC) - EV Charger

Enjoy all the advantages of V2C Cloud app connecting by WiFi or Bluetooth: control the charge, check statistics, and schedule according to your needs.

To Alexa.

Imagine saying “Alexa, start charging my electric car”. With Trydan, it’s a reality. Your voice submits orders and Alexa executes them.

To your solar panels.

Trydan has the most complete photovoltaic integration system which allows you to charge directly from solar power.

Surplus charging

Charge your electric vehicle only with the solar excess without needing energy from the grid.

 Establish a direct connection to your inverter

Trydan connects wirelessly to your inverter* without the need to install additional meter clamps.

 Adapt to different time slots

Charge your car using energy exclusively from the grid, from excess or a combination of both. Choose a mode for each time slot or day – with Trydan you have full control of the PV!

 * Trydan is compatible with all solar inverters. Wirelessly, it establishes a direct connection to GoodWe, Fronius, Huawei, Ingeteam, Kostal, SMA, SolarEdge, SolaX, Victron and Shelly and Wibeee meters.

Other features that make Trydan unbeatable:

Smart Lock

Use the proximity of your smartphone, smartwatch and even your car to lock and unlock your Trydan Pro EV charger.

OCPP communication

Compliant with OCPP 1.6 JSON protocol for integration to management platforms.

 Home Assistant integration

Automate charging thanks to the integration of Trydan in the Home Assistant home automation system.

 Open API for developers

Includes an open API to allow developers to customize the software at will.

Dynamic Load Management

It identifies the total energy consumption in real-time and adjusts the charge to avoid overloading with the V2C control Box or wirelessly connect to the Shelly EM to control both load management and solar charging features over WiFi.

Limitless connectivity

Trydan is the only e-Charger that allows full control through Telegram app thanks to the V2C Bot.

General characteristics

e-Charger: Trydan

Color: Black

Material: Polycarbonate MVR

Weight; 7 kg

Charging Cable length: 5m (7.5m - pricing available on request)

Charging Cable type: Flat/ Spring (pricing available on request)/Socket (No Cable)

Operating temperature: from -25° to 50°

Display*": 2,6"

RGB lighting depending on state of charge

Electrical characteristics

Conector type: Type 2/ Socket

Voltage: 230V/40OV

Maximum power output: 7,4- 22kW*1

Adjustable current; 6 - 32A (per phase)

Nominal frequency: 50Hz/ 60Hz

Protection class: IP54/IK10

Residual current detection: DC 6mA

Connectivity: Bluetooth, Wi-Fi

MID meter*2

*Optional
