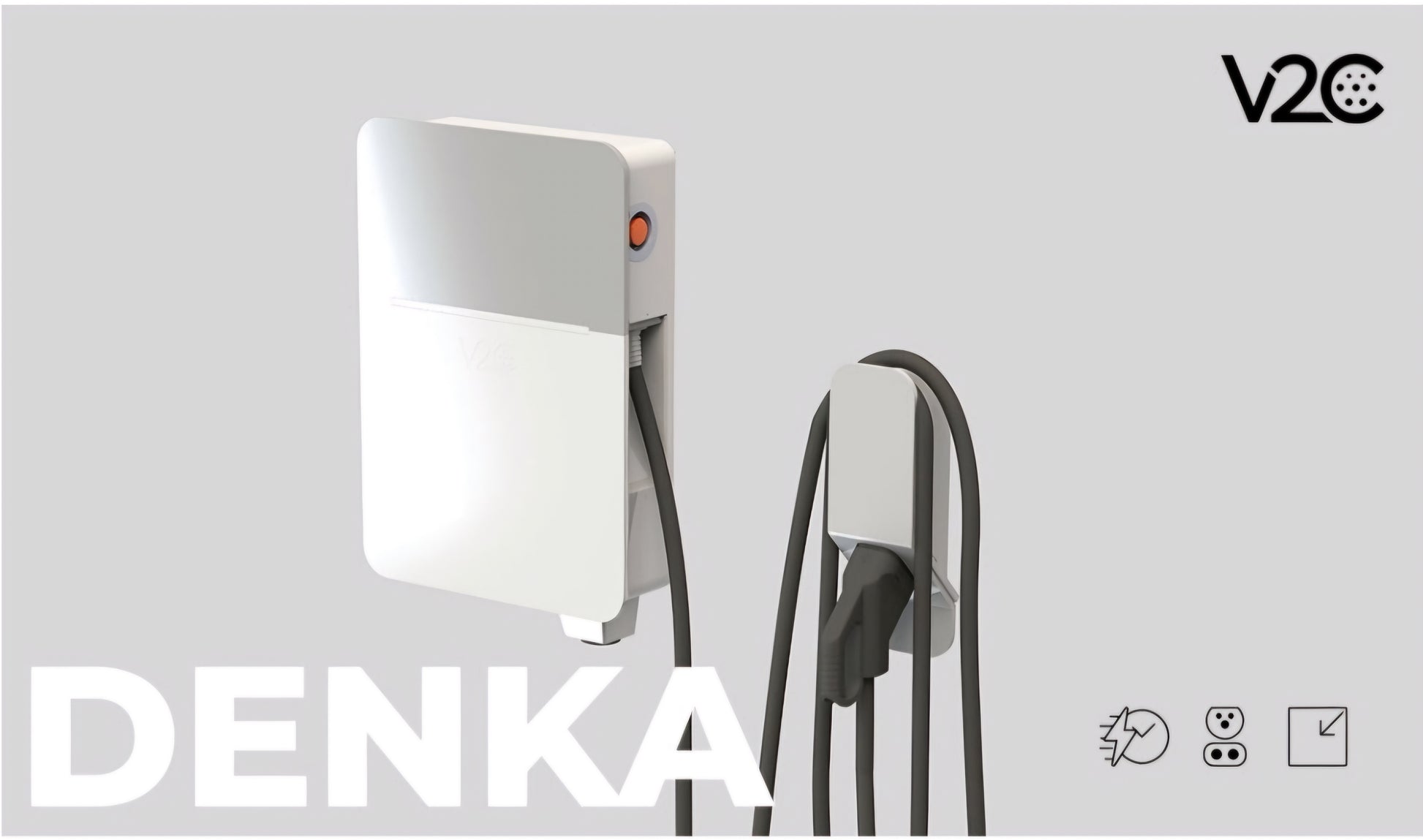

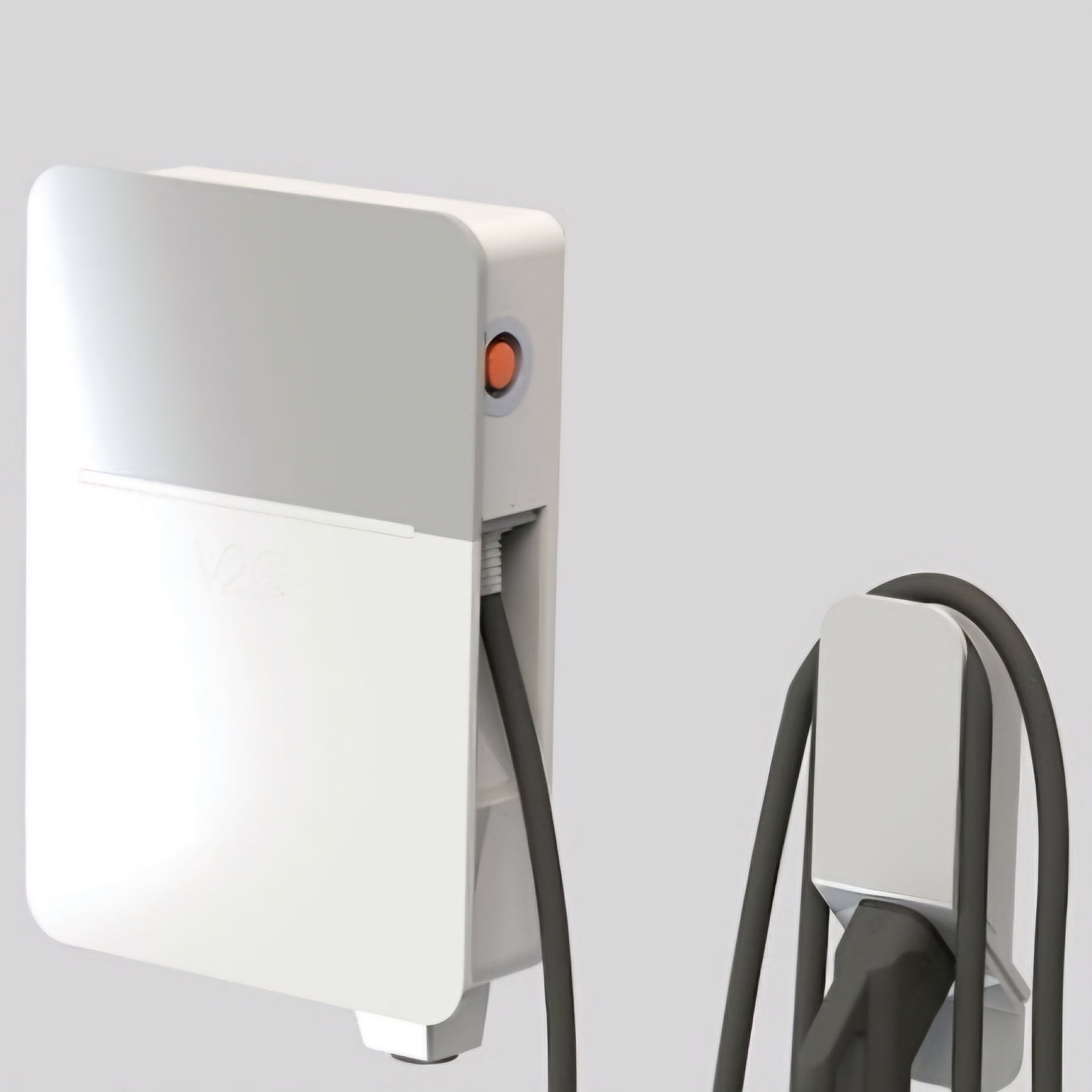

Denka (20-40kW DC) - EV Fast Charger

This compact, aesthetic DC fast charger is perfect for businesses, hotels, carparks and commercial fleet operators to offer an effective charging solution.

Combine the revenue generation, ultimate industrial networking connectivity and smart charger features - including ISO 15118 standard ready. A great value business asset for an increasingly electrified New Zealand.

Technical Specifications

Input Voltage: 400/480 V AC
Input Frequency: 50/60 Hz
Maximum Input Current: 70A
Power: 20-40kW
Power Factor: ≥ 0.98 (load: 50%–100%)
Efficiency: ≥ 95%
Total Harmonic Distortion: ≤ 5% ( load: 50%–100%)
Standby Power Consumption: <20W
Supply System: TT/ TN-S
Input Disconnector: Yes
External Electrical Protection: Required
Maximum Power: 40kW over 300V
Ripple Free DC: <5V
Charging Voltage: 150-1000 VDC
Cable: 5m CCS2
Charging Protocols: ISO15118 (coming soon), DIN SPEC 70121
Dimensions (HxWxD): 70x46x20 cm
Weight: 30-55kg
IP Rating: IP54
Impact Protection Class: IK10
Altitude: <4000m
Environmental Temperature Range: -30ºC -70ºC
Environmental Humidity Range: 5-95%
Cooling: Air Cooled
Communication Protocols: V2C Cloud, OCPP 1.6 Json, API cloud, Modbus TCP, Modbus RTU
Connectivity: 4G, Ethernet, WiFi, RFID, Autocharge.

Load Management: Included

Payment Terminal: Optional

Design Standards: IEC 61851-1, IEC 61851-23, IEC 62477-1,EN 61851-1, EN 61851-23, EN 62477-1, EMC, IEC 61851-21-2, EN61851-21-2, Class B, CE
